Sizing is the treatment of paper or fabrics with a solution to fill pores and set the surface. In the textile industry, starch is used to size the warp yarns, which are subject to high tension during weaving, thereby increasing their strength and amount. This sizing can be readily removed with desizing agents during the bleaching and dyeing in processing plants.
Benefits of Sizing:
To achieve the required number of ends on the weaver beam.
Enhance the tensile strength of the yarns.
Increase the weight of the yarns.
Reduce yarn hairiness.
The smoother the surface of the yarn, the better its overall finish and quality.
The Required Properties for size material:
This should be easily removable.
- It should possess adhesive qualities.
- It must not be harmful.
- Must have antistatic qualities.
- Must be flexible.
- After application, it should demonstrate a good drying capacity.
- This shouldn’t change the fabric’s hue or colour.
- It should be affordable and easily accessible.
- The yarn must not deteriorate or sustain damage.
- it should be simple to remove.
The Ingredients Needed For Sizing Recipe:
- Starch (050500): Low viscosity, high penetration, suitable for fine yarn counts.
- Starch (030700): High viscosity, used for coating, suitable for coarser yarn counts.
- PVA Elvanol.
- Galtex.
- ACR-140 (Acrylic).
- Textile Wax AW-190.
The Machines Used For The Sizing Process:
There is an extensive list of machines available for sizing; however, two of the most renowned for this purpose are Benninger and Karl Mayer. We will provide a detailed comparison of the functions of these machines to facilitate a better understanding of their components and operations.
sizing Cylinders
The Cylinders comparison of Benninger and Karl Mayer Sizing machine:
| Sr. No | Cylinder Type | Benninger | Karl Mayer | Karl Mayer (pro size) |
| 1 | Mini drying cylinders | 4 | 4 | Nill |
| 2 | Drying cylinders | 14 | 14 | 20 |
| 3 | Pre-wet return | 2 | 2 | Nill |
| 4 | Pre-wet exit | 2 | 2 | Nill |
| 5 | Immersion | 2 | 4 | Showering |
| 6 | Lateral lower and upper squeezing | 4 | 4 | 4 |

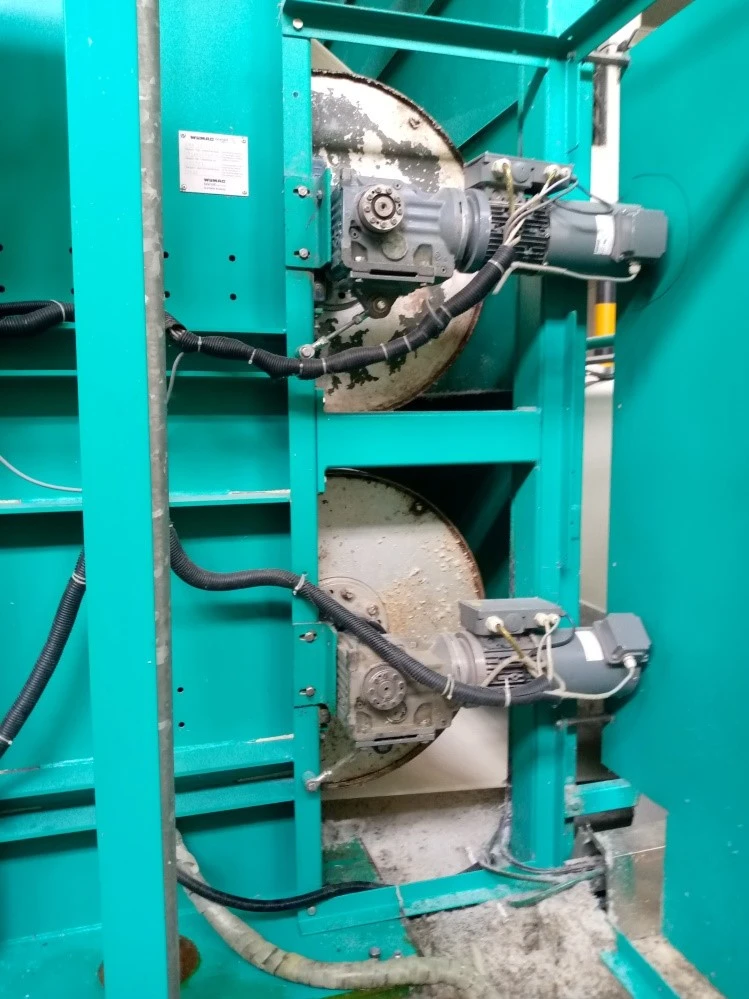

The Motors Details & Functions :
The Motors Details & Functions of Benninger and Karl Mayor Sizing Machine:
| Section of sizing m/c | Benninger | Karl Mayor |
| Creel | 2 motors for mono rail(one for lifting/lowering, one for forward and backward movement) | 2 motors for mono rail (one for lifting/lowering, one for forward and backward movement) |
| Double Pre-wetting box | 1-Two motors for feeding rollers. 2-Two motors for pressing rollers. 3-Two motors for the squeezing rollers of the Pre-Wetting. 4-Two motors for water circulation | 1-Two motors for feeding rollers. 2-Two motors for the lower-squeezing rollers of the Pre-Wetting Box.3-Two motors for water circulation. |
| Double Size Box | One motor for reversing the size liquor back into the tank at the end of a set for both size boxes (for the pump) | 1-Two motors for the final squeezing rollers 2-Two motors for the circulation pumps of the size liquor 3-One motor for returning the size liquor to the tank after the completion of a set for both size boxes (for the pump) |
| Drying Section | One motor is dedicated to the final six drying cylinders. Three motors allocated for ventilation (exhaust fans) | One motor dedicated to the final six drying cylinders. Three motors allocated for ventilation (exhaust fans) |
| Waxing Assembly | One motor for the waxing roller. | One motor for the waxing roller. |
| Head Stock | 1-Two motors for the beam drive. 2-Two motors for beam lifting, 3-Two motors for block movement or adjustment. 4-One motor for beam safety, 5-one motor for the taping device. 5-One motor for the drag roller, 6-three motors for comb movement (vertical adjustment, traversing, and opening/closing). | 1-Two motors for beam drive 2-Two motors for beam lifting 3-Two motors for block movement or adjustment 4-One motor for beam safety 5-One motor for the taping device 6-One motor for the drag roller 7-Three motors for comb movement (one motor for comb opening and closing, one motor for vertical movement, and one motor for horizontal traversing) |
| Cooking Section | One motor for stirring the cooker, one motor for stirring the storage tankOne motor for transferring the sizing recipe from the cooker to the storage tank | One motor for stirring the cooker, one motor for stirring the storage tank. One motor for transferring the sizing recipe from the cooker to the storage tank |
Warp Tension Zone and Factors:
The warp sheet is subjected to significant tension during sizing, which affects the yarn’s elongation and stretch. The applied tension should be comparable to the tensile strength of the yarn, to minimise excessive breakages during sizing. A sizing machine has six identified tension zones.
| SR# | Name Of Zone | Range | Factors |
| 1 | Factors | From the 1st warping beam of the creel to the drag roll at the size box | 5 – 7 |
| 2 | In-Let Zone | From the drag roll to the first nip | 3 – 4 |
| 3 | Wet Zone | From the 2nd nip to the first drying cylinder. | 3.5 |
| 4 | Dry Zone | From the last drying cylinder to the guide roll (headstock) | 11 – 14 |
| 5 | Winding Zone | From guide roll to weaver’s beam | 18 –24 |
| 6 | Pressing Zone | Tension by the press trolley on the beam | 16– 20 |
Warp Tension Zone and Calculations:
Tension can be calculated at any zone by the following formula: Tension = W Warp x Factor, where W Warp = (𝑇𝑜𝑡𝑎𝑙 𝑒𝑛𝑑𝑠 × 1.0936 / 840 × 𝑌𝑎𝑟𝑛 𝑐𝑜𝑢𝑛𝑡) × 453.6 W Warp</sub> = 15000 × 1.0936 / 840 × 40) × 453.6 W Warp</sub> = 221.5 g/m.</sub>
Q: Where do we get 453.6 values in this formula?
One pound is equal to 453.592 grams. For the approximately 453.6 pounds-to-grams conversion, we use it.
Now, the pressure of diverse zones is calculated as:
Let-off tension = 6 × 221.5 = 13.29
In-let tension = 3 × 221.5 = 664.5
Solid Concentration% Formula:
| Size Material | Solid Content % | Quantity Ratio |
| ACR. | 50% | 3 kg |
| Starch | 85% | 60 kg |
| Wax | 100% | 2 kg |
Amount of Water = 875 Kg. Total recipe = 940Kg 1 batch of cooking will be done. Conc. % = 65 Kg/940=6.9%. Weight of Un-sized yarn Formula: Weight of un-sized yarn = Length × Total.Ends / 768.1× yarn COUNT Weight of sized yarn Formula: Weight of size substances = Sized yarn weight – Un-sized warp weight
Procedure Of Sizing Process:
- Obtain warped beams from the warping section.
- Prepare the maximum number of warped beams based on the sizing creel capacity and production demand.
- Attach the yarn from each beam to the sizing machine.
- Inspect the sizing chemical thoroughly.
- Apply the sizing chemical to the warp sheet.
- Verify the functionality of the drying section to ensure proper drying of the warp sheet.
- Set the tension according to the designated zones.
- Wind the warp sheet onto the beam.
- Transfer the beam to the storage area for the subsequent weaving process.
Conclusion:
We utilize warped beams, which are straightened to remove any distortions, and secure them to the creel of the sizing machine. Subsequently, the sizing process is initiated. Due to the machine’s capacity limitations, we employ a maximum of 28 beams simultaneously for the above sizing machines.
